Application |

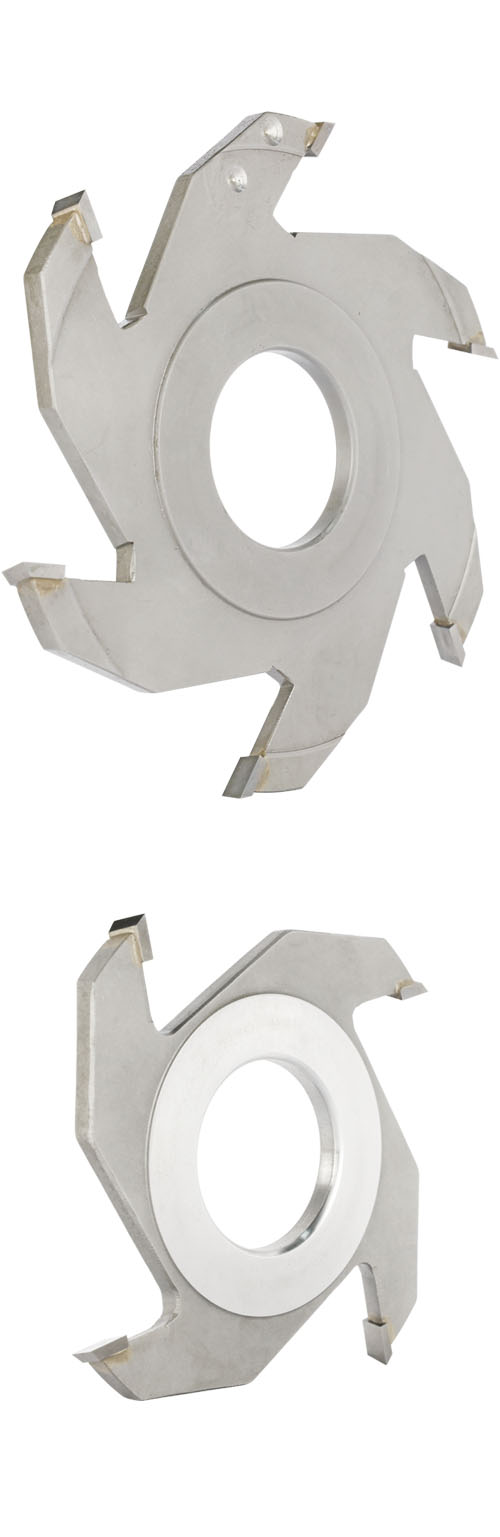

Brazed Reference Engraver is used in 4 side moulder. Combining with a cutterhead that assembled at the first bottom spindle to use. |
|---|---|
|
Cutterhead’s material |
Iron |
|
Applying Machine |
Four Side Moulder |
|
Cutting Material |
solid wood |
|
Dynamically balanced |
6,000 or 8,000 rpm |
Information Of Production
Specification
| Model | Diameter (mm) | Length (mm) | Bore (mm) | Wings (shear angle) |
|---|---|---|---|---|
| D15D127T8d40W4 | 127 | 8 | 40 | 4 |
| D15D150T8d38W4 | 150 | 8 | 38 | 4 |
| D15D150T8d40W4 | 150 | 8 | 40 | 4 |
| D15D150T8d40W4R | 150 | 8 | 40 | 4 (counterclockwise) |
| D15D150T8d46W4 | 150 | 8 | 46 | 4 |
| D15D150T8d46W4R | 150 | 8 | 46 | 4 (counterclockwise) |
| D15D150T8d50W4 | 150 | 8 | 50 | 4 |
| D15D150T8d40W6 | 150 | 8 | 40 | 6 |
| D15D150T8d50W6 | 150 | 8 | 50 | 6 |
| D15D150T8d54W6 | 150 | 8 | 54 | 6 |
| D15D150T10d50W4 | 150 | 10 | 50 | 4 |
| D15D150T10d50W4R | 150 | 10 | 50 | 4 (counterclockwise) |
| D15D152T8d40W4 | 152 | 8 | 40 | 4 |
| D15D152T8d40W6 | 152 | 8 | 40 | 6 |
| D15D152T8d50W6 | 152 | 8 | 50 | 6 |
| D15D152T12d40W4 | 152 | 12 | 40 | 4 |
| D15D155T8d40W4 | 155 | 8 | 40 | 4 |
| D15D160T8d40W4 | 160 | 8 | 40 | 4 |
| D15D160T8d50W4 | 160 | 8 | 50 | 4 |
| D15D160T8d50W4R | 160 | 8 | 50 | 4 (counterclockwise) |
| D15D175T8d40W6 | 175 | 8 | 40 | 6 |
| D15D175T8d50W4 | 175 | 8 | 50 | 4 |
| D15D175T8d50W6 | 175 | 8 | 50 | 6 |
| D15D180T10d40W8 | 180 | 10 | 40 | 8 |
| D15D188T8d40W4 | 188 | 8 | 40 | 4 |
* Most of Brazed Reference Engravers, listed on the specification, are in stock.
