Application |
Flooring Tenon Cutting (both tongue & groove) |
|---|---|
|
Cutterhead’s Material |
Iron |
|
Straight Bore |
25.4, 30, 40, 50 mm |
|
Knife Material |
Tungsten carbide |
|
Applying Machine |
Four Side Moulder, Double End Tenoner. |
|
Cutting Material |
Solid Wood |
|
Dynamically Balanced |
6000 rpm |
Information of production
Features

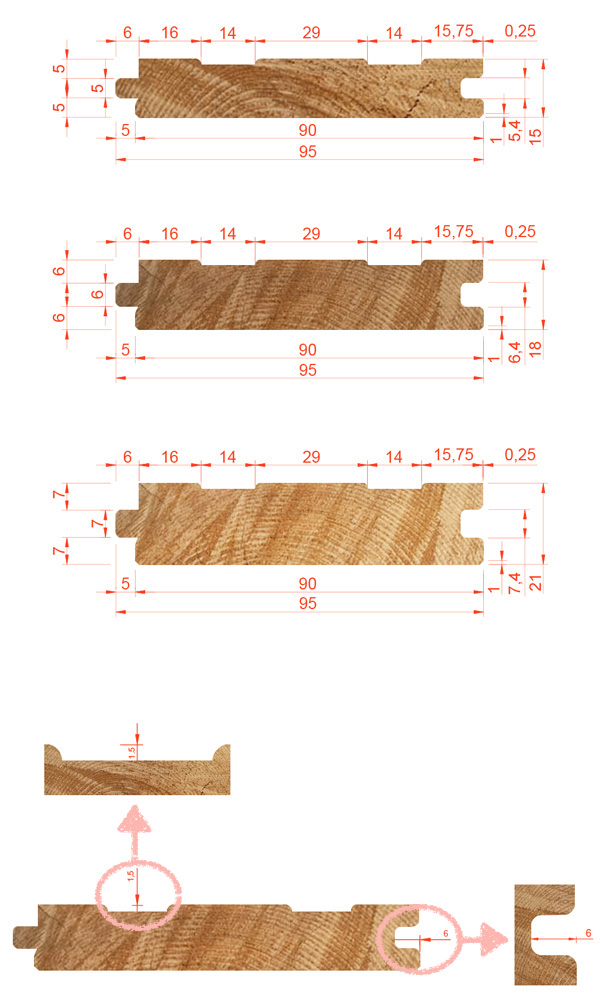

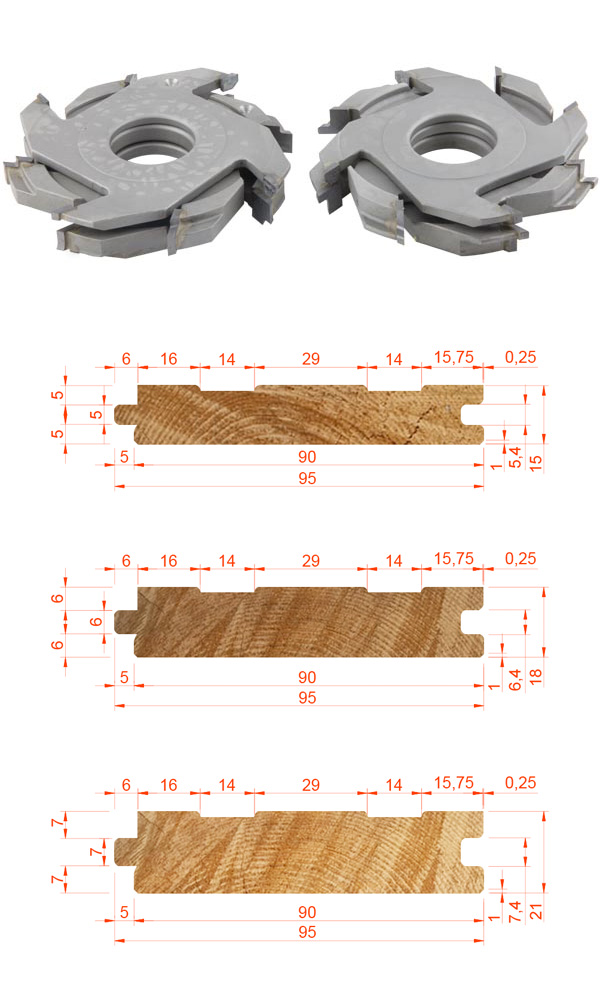

1. Can do floor tenon, both tongue & groove, in 4-side moulder and Double End Tenoner.
2. The knives of the cutter heads are made by T.C.T. The durability is reliable.
3. High precision.
4. The tenon length is adjustable through spacers.

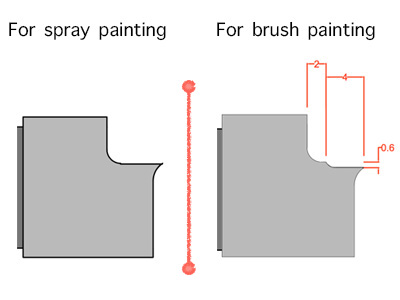

5. We can manufacture the brazed floorboard cutter head for spray painting or brush painting.

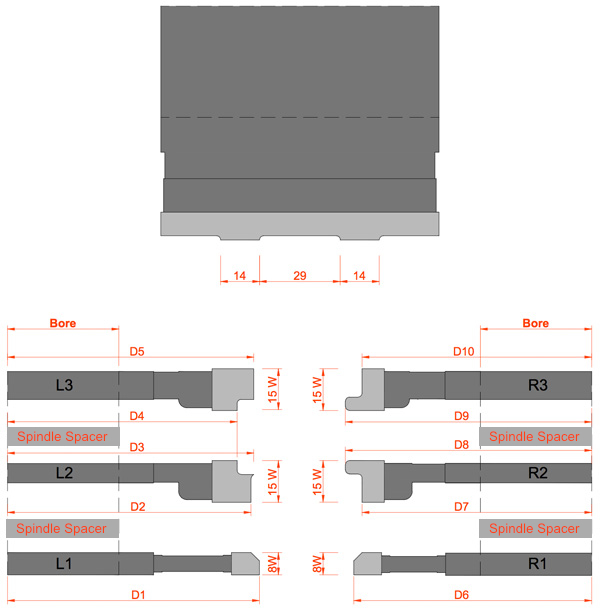

Specification
|
Code |
Machine |
Number |
Diameter (m/m) |
Width (m/m) |
Bore (m/m) |
Wings |
|---|---|---|---|---|---|---|
|
LR06K |
4-side Moulder |
R-3 |
D10=125/D9=137 |
20 |
40/50 |
4T/6T |
|
LR05K |
4-side Moulder |
R-2 |
D8=137/D7=125 |
16 |
40/50 |
4T/6T |
|
LR04K |
4-side Moulder |
R-1 |
D6=131 |
12 |
40/50 |
4T/6T |
|
LR03K |
4-side Moulder |
L-3 |
D5=137/D4=125 |
20 |
40/50 |
4T/6T |
|
LR02K |
4-side Moulder |
L-2 |
D3=137/D2=135 |
16 |
40/50 |
4T/6T |
|
LR01K |
4-side Moulder |
L-1 |
D1=141 |
12 |
40/50 |
4T/6T |
|
LR012K |
Double End Tenoner |
R-3 |
D10=138/D9=150 |
20 |
25.4/30 |
6T |
|
LR011K |
Double End Tenoner |
R-2 |
D8=150/D7=138 |
16 |
40/50 |
6T |
|
LR010K |
Double End Tenoner |
R-1 |
D6=144 |
12 |
40/50 |
6T |
|
LR09K |
Double End Tenoner |
L-3 |
D5=150/D4=138 |
20 |
40/50 |
6T |
|
LR08K |
Double End Tenoner |
L-2 |
D3=148/D2=150 |
16 |
40/50 |
6T |
|
LR07K |
Double End Tenoner |
L-1 |
D1=154 |
12 |
40/50 |
6T |
