Application |
for finger jointing |
|---|---|
|
Cutterhead’s material |
High Tensile Steel |
|
Diameter |
160, 210 mm |
|
Width |
4, 9, 12 mm |
|
Bore |
50, 70 mm |
|
Winds |
2, 3, 4 |
|
Finger Length |
8, 11.4, 14 mm |
|
Knife Material |
Tungsten Carbide |
|
Workpiece material |
soft wind (2-wind), hard wood (3-wind) |
|
Machine |
Finger joint machines |
Information Of Production
About Finger Joint Cutter

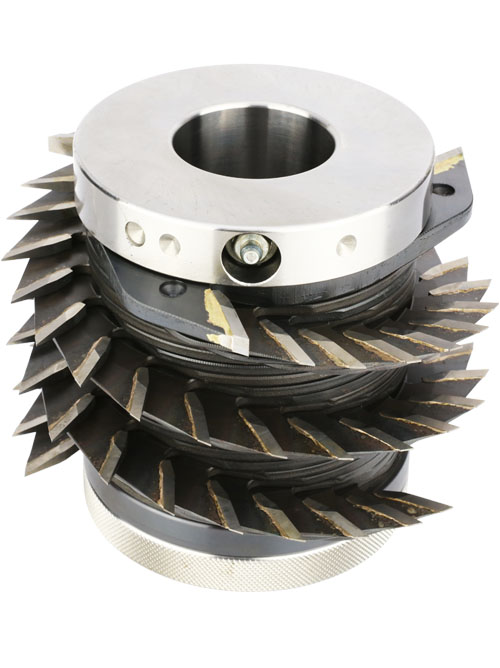

LR-Tool provides various Brazed Finger Joint Cutter to deal with different wood material. The 2-wing Finger Joint Cutter is suitable for Soft Wood; The 3-wing is suitable for hard wood or high feeding speed. Moreover, the maximum 4T, the most durable for cutting solid wood, is also available. 4-teeth finger joint cutter just need low rotation, 4,500 RPM, to achieve highest feeding speed. According to the quantity of finger joint cutter, cutting length is adjustable.
Brazed Finger Joint Cutter can match with a hydro-sleeve that can remove the clearance between bore and spindle to achieving high accuracy cutting.

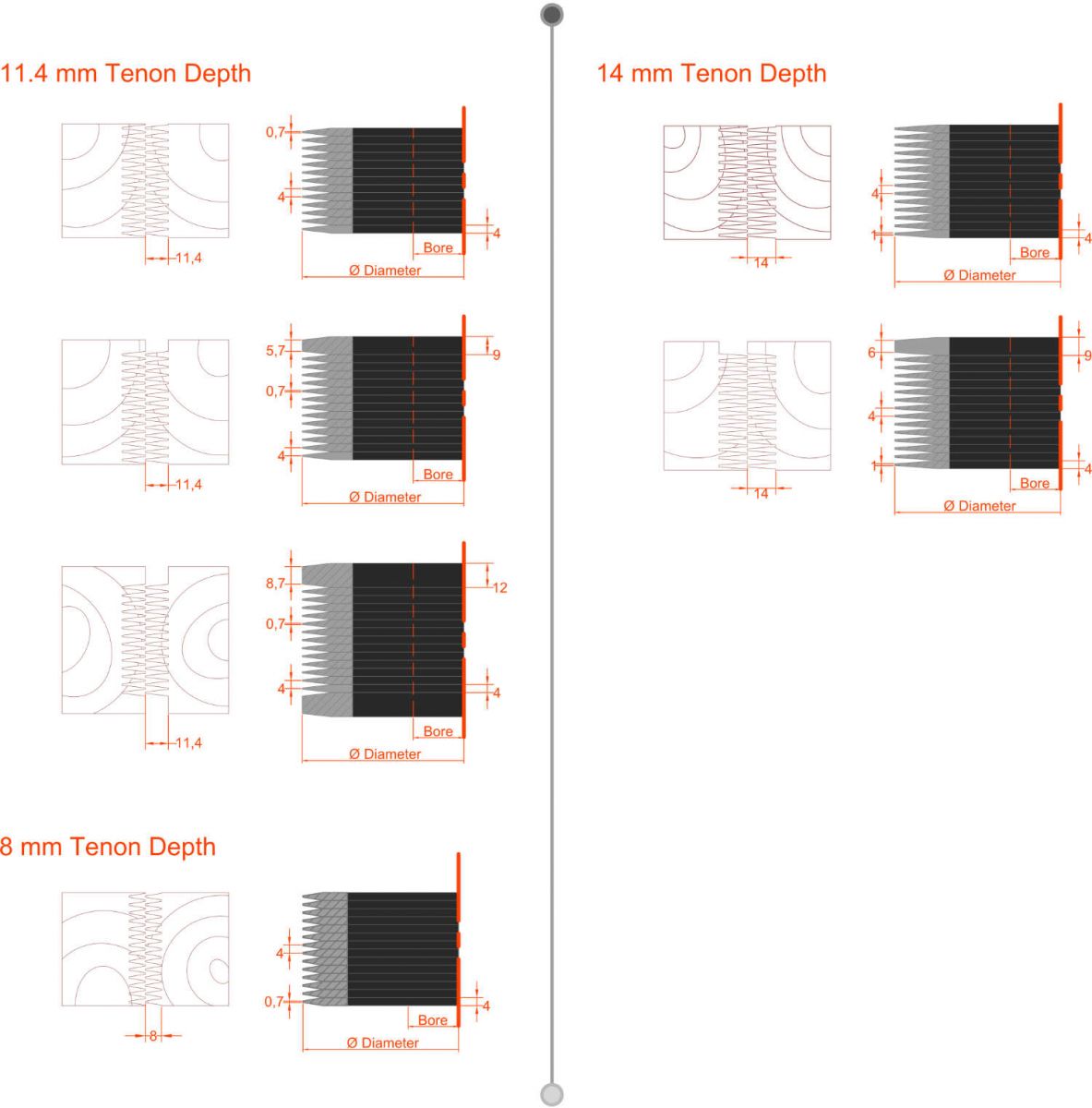

Specification and Finger Length
|

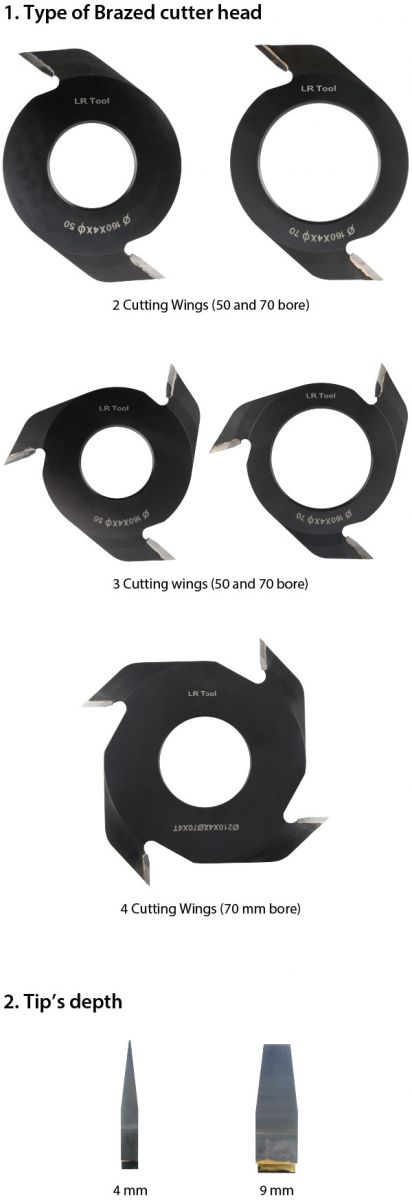

Model |
Diameter |
Thickness |
Bore |
Wing (Z) |
Blade Length |
|---|---|---|---|---|---|
|
B4D160L4mmd70W2BL8 |
160 mm |
4 mm |
70 mm |
2 wings |
8 mm |
|
B4D160L4mmd50W2BL11.4 |
160 mm |
4 mm |
50 mm |
2 wings |
11.4 mm |
|
B4D160L9mmd50W2BL11.4 |
160 mm |
9 mm |
50 mm |
2 wings |
11.4 mm |
|
B4D160L12mmd50W2BL11.4 |
160 mm |
12 mm |
50 mm |
2 wings |
11.4 mm |
|
B4D160L4mmd70W2BL11.4 |
160 mm |
4 mm |
70 mm |
2 wings |
11.4 mm |
|
B4D160L9mmd70W2BL11.4 |
160 mm |
9 mm |
70 mm |
2 wings |
11.4 mm |
|
B4D160L12mmd70W2BL11.4 |
160 mm |
12 mm |
70 mm |
2 wings |
11.4 mm |
|
B4D160L4mmd50W3BL11.4 |
160 mm |
4 mm |
50 mm |
3 wings |
11.4 mm |
|
B4D160L9mmd50W3BL11.4 |
160 mm |
9 mm |
50 mm |
3 wings |
11.4 mm |
|
B4D160L4mmd70W3BL11.4 |
160 mm |
4 mm |
70 mm |
3 wings |
11.4 mm |
|
B4D160L9mmd70W3BL11.4 |
160 mm |
9 mm |
70 mm |
3 wings |
11.4 mm |
|
B4D160L4mmd70W2BL11.4 |
160 mm |
4 mm |
70 mm |
2 wings |
14 mm |
|
B4D160L4mmd50W3BL11.4 |
160 mm |
9 mm |
70 mm |
3 wings |
14 mm |
|
B4D160L4mmd70W3BL14 |
160 mm |
4 mm |
70 mm |
3 wings |
14 mm |
|
B4D160L9mmd70W3BL14 |
160 mm |
9 mm |
70 mm |
3 wings |
14 mm |
|
B4D210L4mmd70W4BL11.4 |
210 mm |
4 mm |
70 mm |
4 wings |
11.4 mm |
|
B4D210L9mmd70W4BL11.4 |
210 mm |
9 mm |
70 mm |
4 wings |
11.4 mm |
* Most of Finger Joint Cutters, listed on the specification, are in stock.

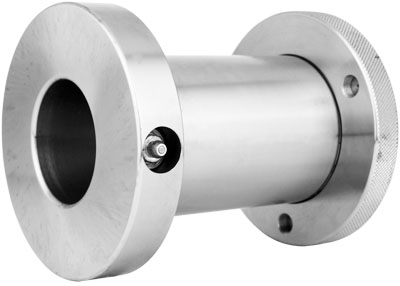

Hydro Sleeves for Brazed Finger Joint Cutter
|
|
Cutting length |
Diameter |
bore |
Total length |
|---|---|---|---|---|
|
Type 1 |
110 mm |
70 mm |
50 mm |
136 mm |
|
Type 2 |
110 mm |
70 mm |
50 mm |
146 mm |
