Application |
for finger jointing |
|---|---|
|
Cutterhead’s material |
High Tensile Steel |
|
Diameter |
160, 210 mm |
|
Width |
25.6, 32 mm |
|
Bore |
50 mm |
|
Winds |
4 (2+2), 6 (3+3), 8 (4+4) wings |
|
Finger Length |
2.5, 11.4 mm |
|
Insert Material |
Inserts with inlaid tungsten carbide |
|
Workpiece material |
solid wood |
|
Machine |
Finger joint machine |
Information Of Production

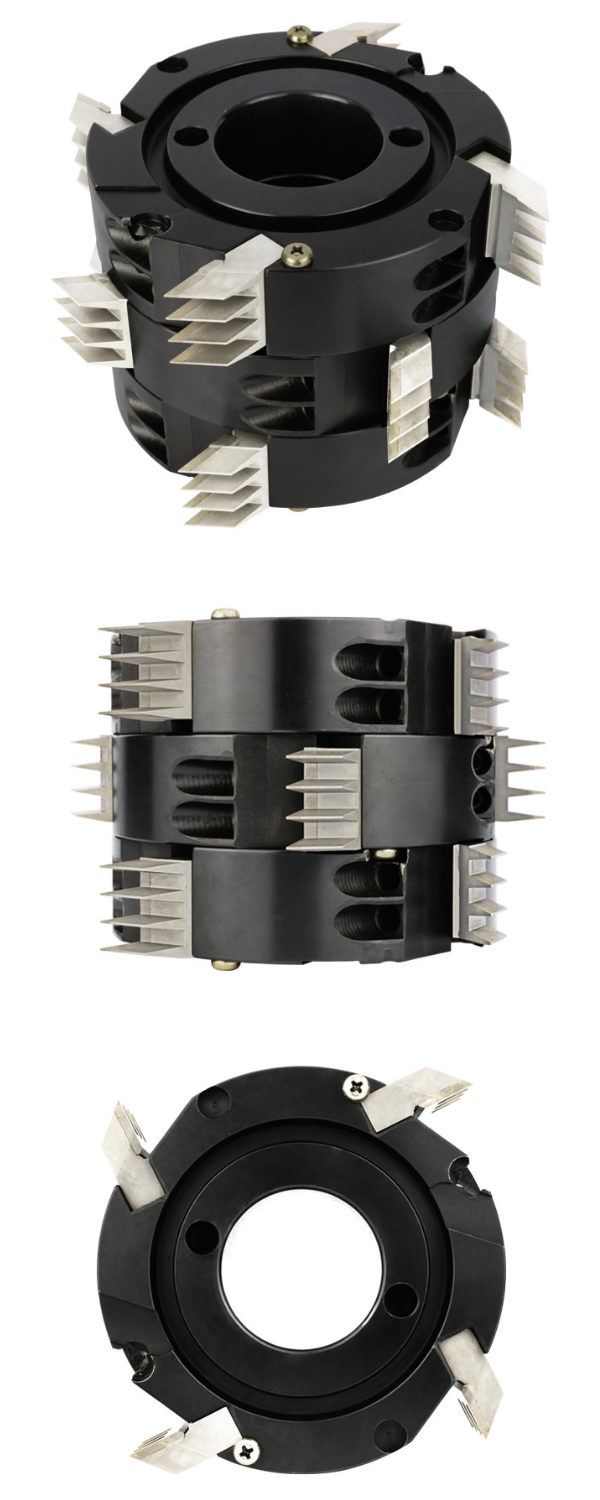

About Replaceable Finger Joint Cutter
The Replaceable Finger Joint Cutter is designed for finger joint machine. LR Tool use carbide inlay Knife for longer working time and reduce the sharpen times per month. The insert’s tooth can be resharpen several times.
The Cutter body is machined from high tensile steel. And, we use precise CNC to make each cutter head. Thus, the quality of Replaceable Finger Joint Cutter is reliable.
We sell the insert of Replaceable Finger Joint Cutter on our official website. Please feel free to contact us for inquiry or buy insert on our website.

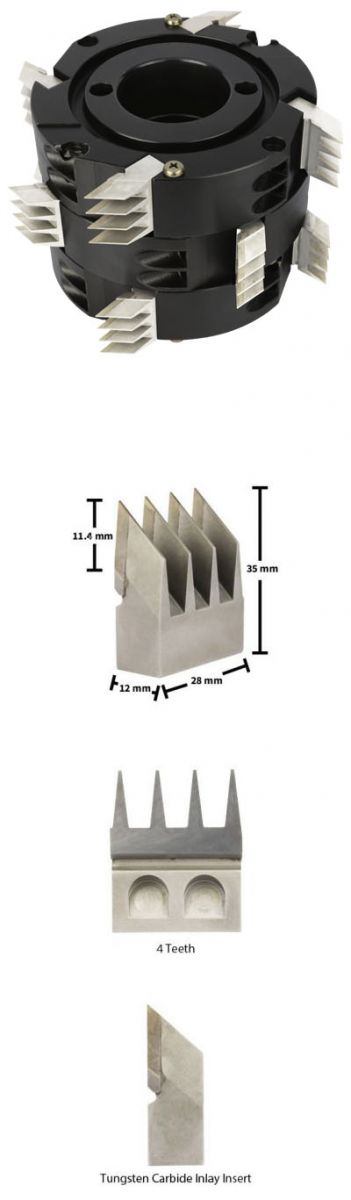

11.4 mm Blade Length

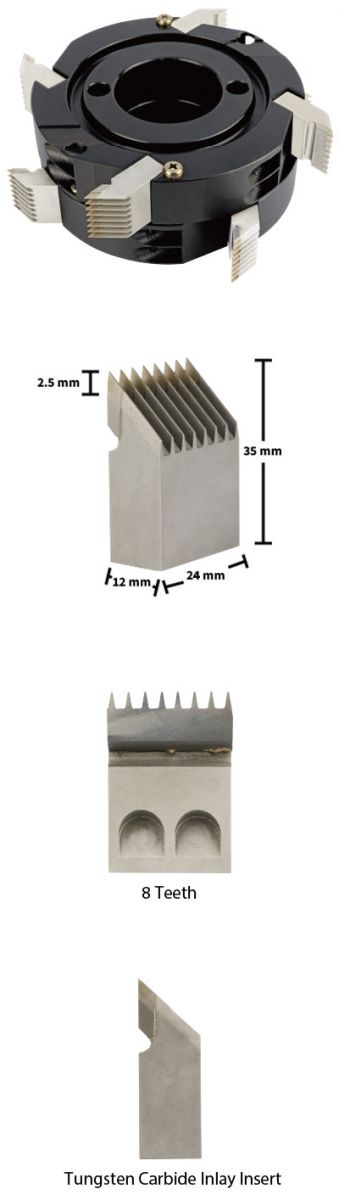

2.5 mm Blade Length
Specification
|
Diameter (with knives) |
Diameter (cutter head) |
Thickness |
Bore |
Wings |
Blade Length |
Quantity of Finger |
|---|---|---|---|---|---|---|
|
160 mm |
128 mm |
32 mm |
50 mm |
2 + 2 |
11.4 mm |
8 |
|
160 mm |
128 mm |
32 mm |
50 mm |
3 + 3 |
11.4 mm |
8 |
|
160 mm |
128 mm |
25.6 mm |
50 mm |
2 + 2 |
2.5 mm |
16 |
|
160 mm |
128 mm |
25.6 mm |
50 mm |
3 + 3 |
2.5 mm |
16 |
|
210 mm |
178 mm |
32 mm |
50 mm |
4 + 4 |
11.4 mm |
8 |
* All Replaceable Finger Joint Cutters are manufactured after ordering.
* LR-Tool welcome customizing that the size is not including in the specification. Please email us for inquiring or ordering.
Insert for Finger Joint Cutter Head
|
|
Length |
Width |
Thickness |
Cutting Length |
Material |
|---|---|---|---|---|---|
|
Standard Insert |
35 mm |
28 mm |
12 mm |
11.4 mm |
Tungsten Carbide Inlay |
|
Tiny Insert |
35 mm |
24 mm |
12 mm |
2.5 mm |
Tungsten Carbide Inlay |
* LR Tool sells the Insert of Replaceable Finger Joint Cutter on official website.
