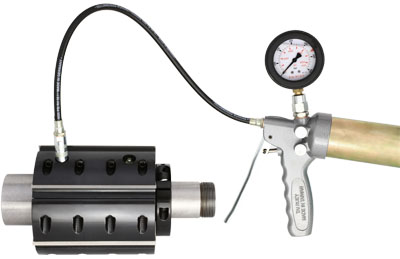

Hydro Planing Cutter Head

Information Of Production

Hydro System safty pressure

350 BAR

Application

finish planing

Cutterhead’s Material

High Tensile Steel

Diameter

143,150, 163,183, etc. (containing knifes)

Cutting Length

50, 75, 100, 125, 155, 180, 205, 230, 280, 305 mm

Straight Bore

40, 50 mm. 1 1/2, 1 13/16, 2 1/8

Knife Hook

4, 6, 8, 10, etc

Knife Dimension

width 30 mm. thick 3 mm (smooth back)

Cutting Material

Softwood, Hardwood, MDF, Plywood

Softwood, Hardwood, MDF, Plywood

6,000 or 8,000 rpm

Applying Machine

Moulder, Spindle Shaper

＊ All the Hydro Planing Cutterhead is manufactured after ordering, please e-mail us for inquiring or ordering.

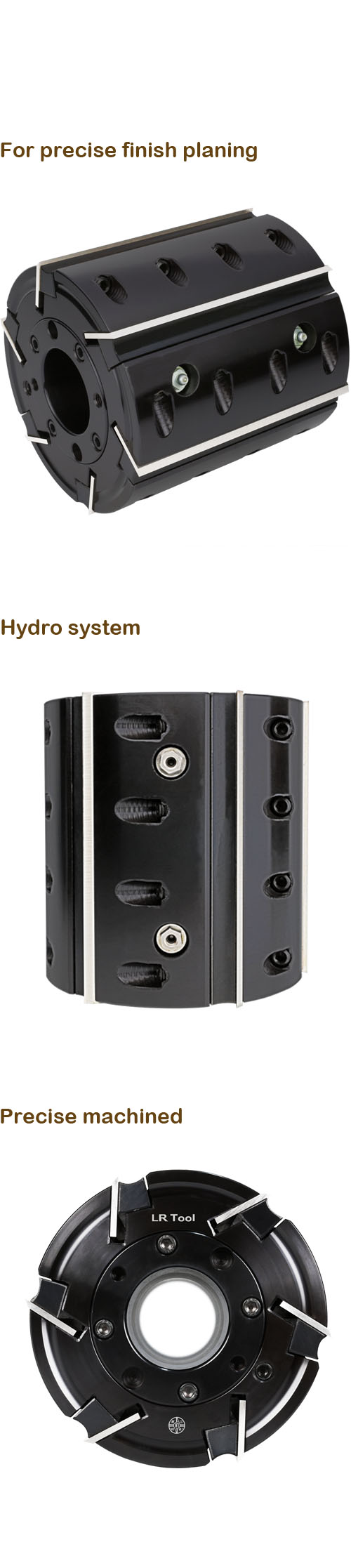

Features

1. The Hydro system can eliminate the tolerance that between bore and spindle to ensuring concentric precision.



2. LR Tool only uses superior steel and high-precision CNC to manufacture any Hydro Planing Cutterhead.

3. Dynamically balanced to 6,000 or 8,000 rpm that can effectively reduce uneven rotating vibration.

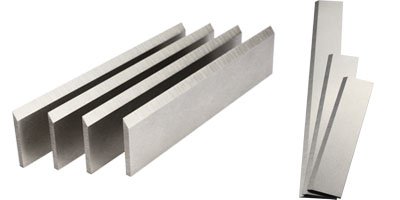

Knife

HSS Planing Cutter knife



Length

Width

Height

50 mm

30 mm

3 mm

75 mm

30 mm

3 mm

100 mm

30 mm

3 mm

125 mm

30 mm

3 mm

155 mm

30 mm

3 mm

180 mm

30 mm

3 mm

205 mm

30 mm

3 mm

230 mm

30 mm

3 mm

255 mm

30 mm

3 mm

280 mm

30 mm

3 mm

305 mm

30 mm

3 mm

＊Carbide Inlay Knives are custom-made.

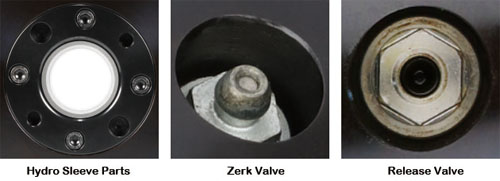

Accessory
