Application |
finish planing |
|---|---|
|
Cutterhead’s Material |
Steel or Aluminum (depend on cutterhead’s weight) |
|
Diameter |
130 - 305 mm |
|
Cutting Length |
50 - 305 mm |
|
Straight Bore |
40, 50 mm |
|
Knife Hooks |
4, 6, 8, 10 |
|
Knife Size |
width 14 mm. thick 2.5 mm (corrugated back) |
|
Cutting Angle |
Straight angle |
|
Applying Machine |
Four Side Moulder |
|
Cutting Material |
solid wood |
|
Dynamically balanced |
6,000 or 8,000 rpm |
Information of production
Features
◉ Used for 4 Side Moulder.
◉ For finish cutting.
◉ Hydro system can eliminate the tolerance between bore and spindle achieving high precision cutting.
◉ Tiny corrugated knife used (Width:14 mm, Thickness 2.5 mm). The HSS or TCT knife are available.
◉ Since the special design of wedge and knife hook, Hydro Quick-Replace Cutterhead can extremely quick and effortless replace knives; greatly saving lose time.
◉ According to cutterhead’s dimension, the material of cutterhead’s body is defferent. Usually, we use steel to make the Hydro Quick-Replace Cutterhead. But, if the cutterhead’s weight is too heavy, we will use Aluminum to make Hydro Quick-Replace Cutterhead for reduce the weight, the light weight body can significantly reduce the load of machine.
Knives
|
Length |
Width |
Thick |
|---|---|---|
|
50 mm |
14 mm |
2.5 mm |
|
75 mm |
14 mm |
2.5 mm |
|
100 mm |
14 mm |
2.5 mm |
|
125 mm |
14 mm |
2.5 mm |
|
155 mm |
14 mm |
2.5 mm |
|
180 mm |
14 mm |
2.5 mm |
|
205 mm |
14 mm |
2.5 mm |
|
230 mm |
14 mm |
2.5 mm |
|
255 mm |
14 mm |
2.5 mm |
|
280 mm |
14 mm |
2.5 mm |
|
305 mm |
14 mm |
2.5 mm |
|
405 mm |
14 mm |
2.5 mm |
＊Tungusten Carbide Knives are custom-made.

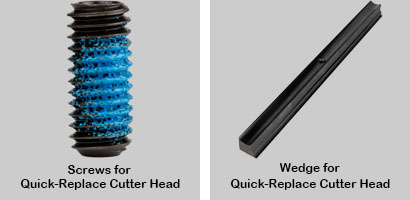

Accessory
