LR Tool official (Lin Ruey Knifeware), Cutter Head, Woodworking Tool.-Other Tools

Information Of Production

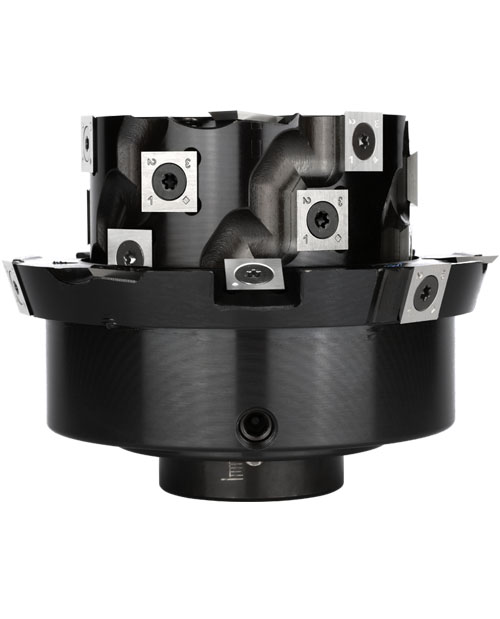

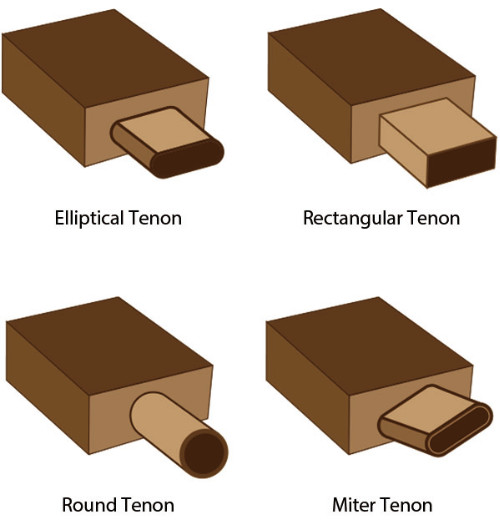

Application	tenon processing (Rectangular Tenon, Elliptic Tenon, Round Tenon etc.)
Cutterhead material	High Tensile Steel and Aluminum alloy
Dimension	as the specification
Insert Knife	15 mm x 15 mm x 2.5 mm (37-degree bevel)
Spur Insert Knife	14 mm x 14 mm x 2.0 mm (37-degree bevel)
Insert material	Tungsten Carbide
Cutting material	solid wood, MDF
Machine	Double End Tenoner, Tenoner Machine

About Insert Knife Tenon Cutter Head

The Insert Knife Tenon cutter is suitable for single Tenoner and Double-end Tenoner that process Rectangular Tenon, Elliptic Tenon and Round Tenon etc.

The Tenon Length of cutting is adjustable, between 7 mm - 40mm.

All Tenon Cutterheads are machined by accurate CNC and high tensile steel. The quality is reliable.

LR Tool’ design the cutters well angles and chip-grooves that help the efficiency of production and prevent workpieces tear-out and wood dust sticking in cutter when cutter is cutting the workpieces.

Comparing with brazed cutter, replaceable Insert design is economical. A brazed Tenon Cutter needs replacing whole cutter when knives running out all length of blade. But, Insert Tenon Cutter just replace inexpensive square inserts. All inserts have 4 side can be use. and all inserts are made by tungsten carbide that is extremely durable, over 10 times working time than high speed steel’s working time. Due to the insert of high hardness, the cutters can process hard wood, MDF, plywood etc.

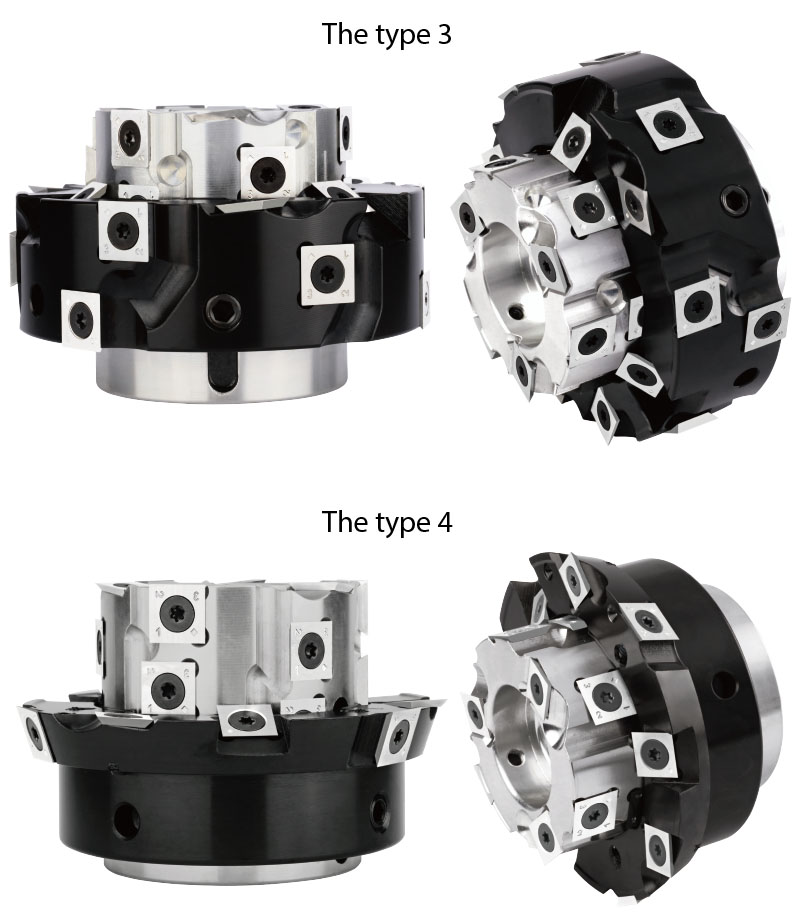

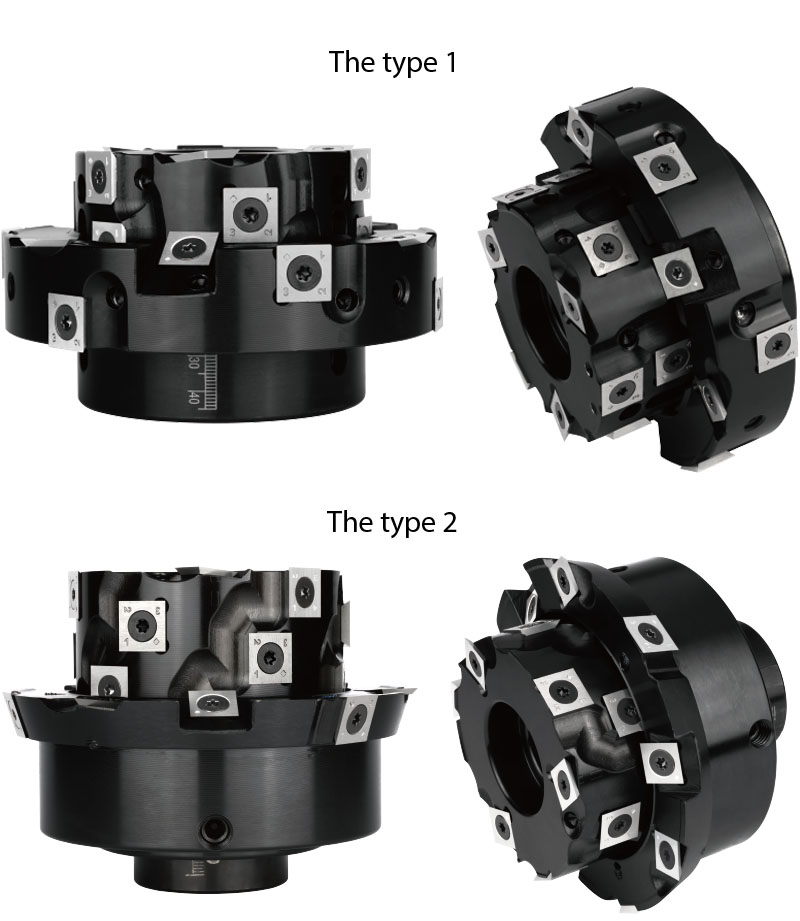

4 types of Insert Knife Tenon Cutter Head

Processing Tenon

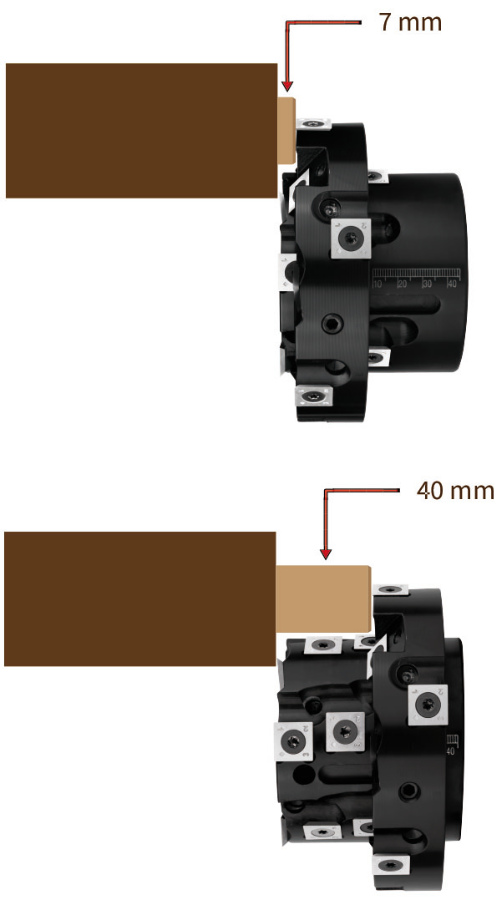

The Tenon Length is adjustable

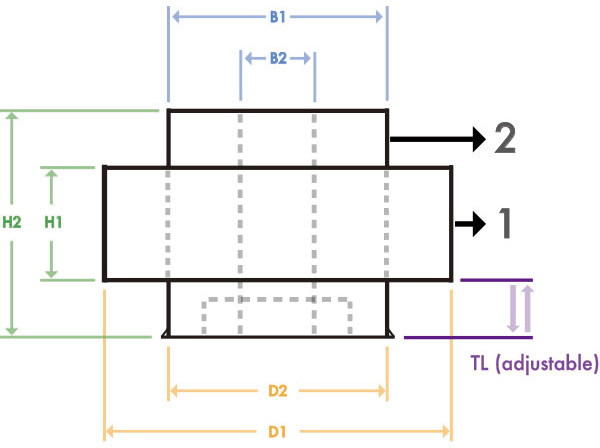

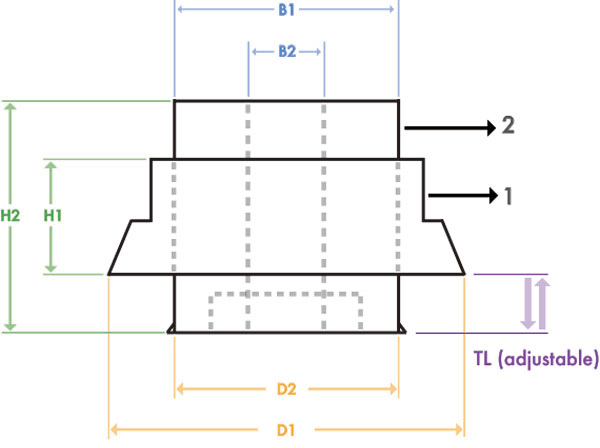

Specification

	D1	D2	B1	B2	H1	H2	T1	T2	Spur	Chamfer (T1)	TL	Rotation
Type 1	132 mm	90 mm	86 mm	30 mm	29.1 mm	75.1 mm	6T	6T	3T	3T (35 degrees)	7-40 mm
Type 3	118 mm	75 mm	71 mm	1 in	38.5 mm	77.5 mm	6T	6T	3T	3T (35 degrees)	7-40 mm	CW
Type 3	118 mm	75 mm	71 mm	1 in	38.5 mm	77.5 mm	6T	6T	3T	3T (35 degrees)	7-40 mm	CCW

	D1	D2	B1	B2	H1	H2	T1	T2	Spur	Chamfer (T1)	TL	Rotation
Type 2	132 mm	90 mm	50 mm	30 mm	50.4 mm	100.6 mm	3T	6T	3T	3T (35 degrees)	7-40 mm
Type 4	118 mm	75 mm	71 mm	1 in	38.5 mm	77.5 mm	3T	6T	3T	3T (35 degrees)	7-40 mm	CW
Type 4	118 mm	75 mm	71 mm	1 in	38.5 mm	77.5 mm	3T	6T	3T	3T (35 degrees)	7-40 mm	CCW

Insert Knife

Depending on workpiece’s material, LR Tool provide 2 kinds of material insert knife. First is KCR08 for normal hardwood. Next is the SMG02, suitable for extremely hard or man‐made material like plywood or MDF.

Size	Material
14 mm x 14 mm x 2.0 mm (37-degree bevel)	Tungsten Carbide (kcr08)
15 mm x 15 mm x 2.5 mm (37-degree bevel)	Tungsten Carbide (kcr08)
15 mm x 15 mm x 2.5 mm (37-degree bevel)	Tungsten Carbide (wf05)
15 mm x 15 mm x 2.5 mm (37-degree bevel)	Tungsten Carbide (smg02)
