- The 45° Trimming Cutter Head‘s body are machined from high tensile steel.
- Suitable for 4 side moulder.
- High precision.
- The replaceable insert is machined from Tungsten Carbide. An insert has 4 new edge can be used.
About 45° Trimming Cutter Head
Specification of 45° Trimming Cutter Head
|
Model |
Diameter |
Bore |
Thickness |
Wings |
Chamfer Degree |
|---|---|---|---|---|---|
|
E6D100L 14mmd22W6 |
100 mm |
22 mm |
14 mm |
6 wings |
45 degrees |
|
E6D140L 13mmd40W6 |
140 mm |
40 mm |
13 mm |
6 wings |
45 degrees |
|
E6D140L 13mmd40W4 |
140 mm |
40 mm |
13 mm |
4 wings |
45 degrees |
|
E6D140L 16mmd50W4 |
140 mm |
50 mm |
16 mm |
4 wings |
45 degrees |
|
E6D140L 13mmd50W4 |
140 mm |
50 mm |
13 mm |
4 wings |
45 degrees |
|
E6D140L 13mmd50W6 |
140 mm |
50 mm |
13 mm |
6 wings |
45 degrees |
Insert Knife

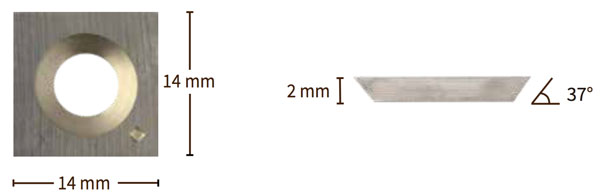

14 mm x 14 mm x 2.0 mm, 37-degree bevel, Tungsten Carbide (kcr08)

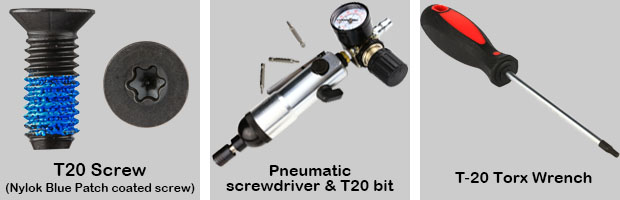

Accessory
