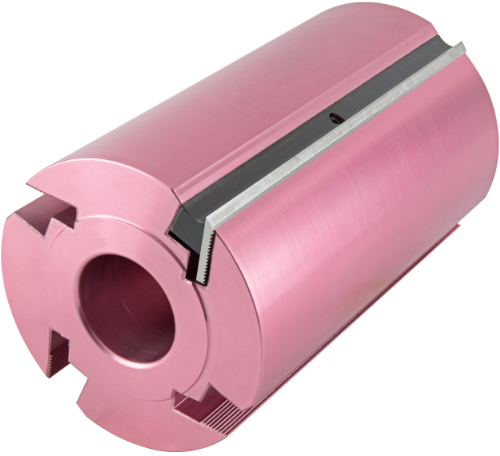

Information Of Production
|
Application |
finish planing |
|---|---|
|
Cutterhead’s Material |
Aluminum Alloy |
|
Diameter |
125 mm |
|
Cutting Length |
50 - 305 mm |
|
Straight Bore |
40, 50 mm. 1 1/2, 1 13/16, 2 1/8 in |
|
Knife Hooks |
4 ,6 |
|
Knife Size |
HSS Corrugated back knife, width 30 mm. thickness 4 mm |
|
Cutting Angle |
Straight angle |
|
Applying Machine |
Four Side Moulder |
|
Cutting Material |
solid wood |
|
Dynamically balanced |
6,000 or 8,000 rpm |
Specification
|
Model |
Diameter |
Length |
Bore |
Wing |
|---|---|---|---|---|
|
A11D125L 2d40W4-A |
125 |
50 |
40 |
4T |
|
A11D125L 3d40W4-A |
125 |
75 |
40 |
4T |
|
A11D125L 4d40W4-A |
125 |
100 |
40 |
4T |
|
A11D125L 5d40W4-A |
125 |
125 |
40 |
4T |
|
A11D125L 6d40W4-A |
125 |
155 |
40 |
4T |
|
A11D125L 7d40W4-A |
125 |
180 |
40 |
4T |
|
A11D125L 8d40W4-A |
125 |
205 |
40 |
4T |
|
A11D125L 9d40W4-A |
125 |
230 |
40 |
4T |
|
A11D125L10d40W4-A |
125 |
255 |
40 |
4T |
|
A11D125L11d40W4-A |
125 |
280 |
40 |
4T |
|
A11D125L12d40W4-A |
125 |
305 |
40 |
4T |
|
A11D125L 2d46W4-A |
125 |
50 |
46 |
4T |
|
A11D125L 3d46W4-A |
125 |
75 |
46 |
4T |
|
A11D125L 4d46W4-A |
125 |
100 |
46 |
4T |
|
A11D125L 5d46W4-A |
125 |
125 |
46 |
4T |
|
A11D125L 6d46W4-A |
125 |
155 |
46 |
4T |
|
A11D125L 7d46W4-A |
125 |
180 |
46 |
4T |
|
A11D125L 8d46W4-A |
125 |
205 |
46 |
4T |
|
A11D125L 9d46W4-A |
125 |
230 |
46 |
4T |
|
A11D125L10d46W4-A |
125 |
255 |
46 |
4T |
|
A11D125L11d46W4-A |
125 |
280 |
46 |
4T |
|
A11D125L12d46W4-A |
125 |
305 |
46 |
4T |
|
A11D125L 2d50W4-A |
125 |
50 |
50 |
4T |
|
A11D125L 3d50W4-A |
125 |
75 |
50 |
4T |
|
A11D125L 4d50W4-A |
125 |
100 |
50 |
4T |
|
A11D125L 5d50W4-A |
125 |
125 |
50 |
4T |
|
A11D125L 6d50W4-A |
125 |
155 |
50 |
4T |
|
A11D125L 7d50W4-A |
125 |
180 |
50 |
4T |
|
A11D125L 8d50W4-A |
125 |
205 |
50 |
4T |
|
A11D125L 9d50W4-A |
125 |
230 |
50 |
4T |
|
A11D125L10d50W4-A |
125 |
255 |
50 |
4T |
|
A11D125L11d50W4-A |
125 |
280 |
50 |
4T |
|
A11D125L12d50W4-A |
125 |
305 |
50 |
4T |
|
A11D125L 2d40W6-A |
125 |
50 |
40 |
6T |
|
A11D125L 3d40W6-A |
125 |
75 |
40 |
6T |
|
A11D125L 4d40W6-A |
125 |
100 |
40 |
6T |
|
A11D125L 5d40W6-A |
125 |
125 |
40 |
6T |
|
A11D125L 6d40W6-A |
125 |
155 |
40 |
6T |
|
A11D125L 7d40W6-A |
125 |
180 |
40 |
6T |
|
A11D125L 8d40W6-A |
125 |
205 |
40 |
6T |
|
A11D125L 9d40W6-A |
125 |
230 |
40 |
6T |
|
A11D125L10d40W6-A |
125 |
255 |
40 |
6T |
|
A11D125L11d40W6-A |
125 |
280 |
40 |
6T |
|
A11D125L12d40W6-A |
125 |
305 |
40 |
6T |
|
A11D125L 2d46W6-A |
125 |
50 |
46 |
6T |
|
A11D125L 3d46W6-A |
125 |
75 |
46 |
6T |
|
A11D125L 4d46W6-A |
125 |
100 |
46 |
6T |
|
A11D125L 5d46W6-A |
125 |
125 |
46 |
6T |
|
A11D125L 6d46W6-A |
125 |
155 |
46 |
6T |
|
A11D125L 7d46W6-A |
125 |
180 |
46 |
6T |
|
A11D125L 8d46W6-A |
125 |
205 |
46 |
6T |
|
A11D125L 9d46W6-A |
125 |
230 |
46 |
6T |
|
A11D125L10d46W6-A |
125 |
255 |
46 |
6T |
|
A11D125L11d46W6-A |
125 |
280 |
46 |
6T |
|
A11D125L12d46W6-A |
125 |
305 |
46 |
6T |
|
A11D125L 2d50W6-A |
125 |
50 |
50 |
6T |
|
A11D125L 3d50W6-A |
125 |
75 |
50 |
6T |
|
A11D125L 4d50W6-A |
125 |
100 |
50 |
6T |
|
A11D125L 5d50W6-A |
125 |
125 |
50 |
6T |
|
A11D125L 6d50W6-A |
125 |
155 |
50 |
6T |
|
A11D125L 7d50W6-A |
125 |
180 |
50 |
6T |
|
A11D125L 8d50W6-A |
125 |
205 |
50 |
6T |
|
A11D125L 9d50W6-A |
125 |
230 |
50 |
6T |
|
A11D125L10d50W6-A |
125 |
255 |
50 |
6T |
|
A11D125L11d50W6-A |
125 |
280 |
50 |
6T |
|
A11D125L12d50W6-A |
125 |
305 |
50 |
6T |
Features
◉ Used for 4 Side Moulder.
◉ For finish cutting.
◉ The Light weight body can reduce load of machine.
◉ Corrugated knife used.
◉ Quickly replacing knives reduce time loss.
◉ Tough structure to prevent deformation.
◉ High quality & high precision.

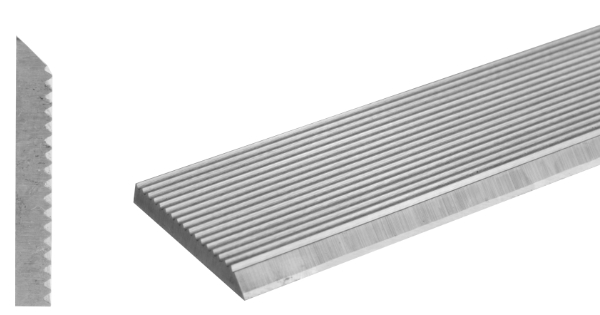

Corrugated back Knife
|
Length |
Width |
Height |
|---|---|---|
|
50 mm |
30 mm |
4 mm |
|
75 mm |
30 mm |
4 mm |
|
100 mm |
30 mm |
4 mm |
|
125 mm |
30 mm |
4 mm |
|
155 mm |
30 mm |
4 mm |
|
180 mm |
30 mm |
4 mm |
|
205 mm |
30 mm |
4 mm |
|
230 mm |
30 mm |
4 mm |
|
255 mm |
30 mm |
4 mm |
|
280 mm |
30 mm |
4 mm |
|
305 mm |
30 mm |
4 mm |
＊Carbide Inlay Knives are custom-made.
