Application
|
pre-planing |
|---|---|
|
Cutterhead’s Material |
High Tensile Steel |
|
Diameter |
125, 150 mm |
|
Cutting Length |
50 – 305 mm |
|
Straight Bore |
30, 40, 46, 50 mm. |
|
Insert knife |
Tungsten Carbide Rectangular Insert knife |
|
Insert knife size |
30 mm x 12 mm x 2.5 mm (2 edges) or 30 mm x 12 mm x 1.5 mm (2 edges) |
|
Cutting Angle |
spiral angle |
|
Suitable Machine |
Four Side Moulder, Multi-Side Moulder |
|
Cutting Material |
solid wood, MDF, plywood |
|
Dynamically balanced |
6,000 or 8,000 rpm |
Information of production
Features
1. All Rectangular Insert Knife Cutterheads are made by High Tensile Steel that can maintain the precision long-term.
2. Because spiral design, the cutting resistance evenly distribute into small insert knives. This light cutting way can prevent tear-out problem, accelerate the feed speed and reduce spindle and bearing’s consumption.
3. Placing insert knife work is easier. Comparing with square insert spiral cutterhead’s replacing insert time, the rectangular cutterhead need less time to replace insert knife.
4. The deep spiraled grooves have astonishing throwing sawdust ability.
5. Comparing with the large sawdust (cutting from the straight cutting angle cutterhead), the smaller sawdust (cutting form rectangular cutterhead) make dust collection equipment working better.
6. The rectangular insert knives of 30 mm x 12 mm x 1.5 mm (2 edges) are suitable for pre-planing.
7. The rectangular insert knives of 30 mm x 12 mm x 2.5 mm (2 edges) are suitable for heavy cutting.
8. If insert knife nicked, just replace it with little cost.
Specification

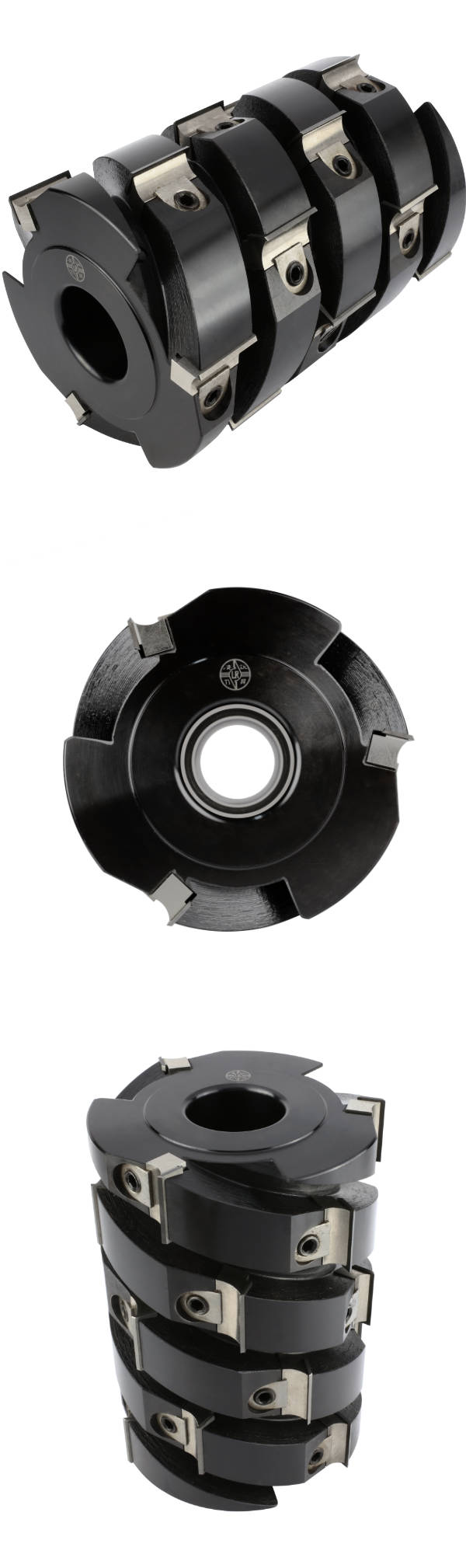

Rectangular-Insert-Knife Spiral Cutter Head (Insert: 30 mm x 12 mm x 2.5 mm)
|
Model |
Diameter |
Length |
Bore |
Wing |
|---|---|---|---|---|
|
A9D125L 2d40W4 |
125 |
50 |
40 |
3T |
|
A9D125L 3d40W4 |
125 |
75 |
40 |
3T |
|
A9D125L 4d40W4 |
125 |
100 |
40 |
3T |
|
A9D125L 5d40W4 |
125 |
125 |
40 |
3T |
|
A9D125L 6d40W4 |
125 |
155 |
40 |
3T |
|
A9D125L 7d40W4 |
125 |
180 |
40 |
3T |
|
A9D125L 8d40W4 |
125 |
205 |
40 |
3T |
|
A9D125L 9d40W4 |
125 |
230 |
40 |
3T |
|
A9D125L10d40W4 |
125 |
255 |
40 |
3T |
|
A9D125L11d40W4 |
125 |
280 |
40 |
3T |
|
A9D125L12d40W4 |
125 |
305 |
40 |
3T |
|
A9D125L 2d46W4 |
125 |
50 |
46 |
3T |
|
A9D125L 3d46W4 |
125 |
75 |
46 |
3T |
|
A9D125L 4d46W4 |
125 |
100 |
46 |
3T |
|
A9D125L 5d46W4 |
125 |
125 |
46 |
3T |
|
A9D125L 6d46W4 |
125 |
155 |
46 |
3T |
|
A9D125L 7d46W4 |
125 |
180 |
46 |
3T |
|
A9D125L 8d46W4 |
125 |
205 |
46 |
3T |
|
A9D125L 9d46W4 |
125 |
230 |
46 |
3T |
|
A9D125L10d46W4 |
125 |
255 |
46 |
3T |
|
A9D125L11d46W4 |
125 |
280 |
46 |
3T |
|
A9D125L12d46W4 |
125 |
305 |
46 |
3T |
|
A9D125L 2d50W4 |
125 |
50 |
50 |
3T |
|
A9D125L 3d50W4 |
125 |
75 |
50 |
3T |
|
A9D125L 4d50W4 |
125 |
100 |
50 |
3T |
|
A9D125L 5d50W4 |
125 |
125 |
50 |
3T |
|
A9D125L 6d50W4 |
125 |
155 |
50 |
3T |
|
A9D125L 7d50W4 |
125 |
180 |
50 |
3T |
|
A9D125L 8d50W4 |
125 |
205 |
50 |
3T |
|
A9D125L 9d50W4 |
125 |
230 |
50 |
3T |
|
A9D125L10d50W4 |
125 |
255 |
50 |
3T |
|
A9D125L11d50W4 |
125 |
280 |
50 |
3T |
|
A9D125L12d50W4 |
125 |
305 |
50 |
3T |
Insert Knife
|
Dimension |
Material |
|---|---|
|
30 mm x 12 mm x 1.5 mm |
Tungsten Carbide (WF05) |
|
30 mm x 12 mm x 2.5 mm |
Tungsten Carbide (YF10) |
|
30 mm x 12 mm x 2.5 mm |
Tungsten Carbide (WF05) |
Accessory
