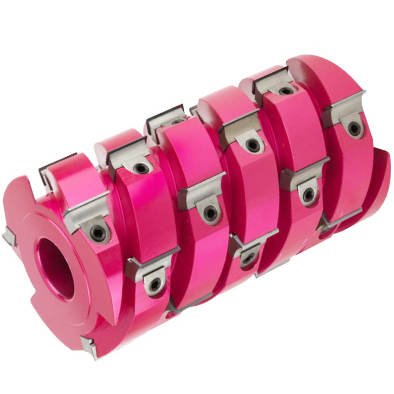

Aluminum Alloy Rectangular-Insert-Knife Spiral Cutter Head

Information of production

Application

pre-planing

Cutterhead’s Material

Aluminum Alloy

Diameter

125, 150 mm

Cutting Length

50 – 305 mm

Straight Bore

30, 40, 46, 50 mm.

Insert knife

Tungsten Carbide Rectangular Insert knife

Insert knife size

30 mm x 12 mm x 2.5 mm (2 edges) or 30 mm x 12 mm x 1.5 mm (2 edges)

Cutting Angle

spiral angle

Suitable Machine

Four Side Moulder, Multi-Side Moulder

Cutting Material

solid wood, MDF, plywood

Dynamically balanced

6,000 or 8,000 rpm

Features

1. The light weight body can reduce load of machine. The lifespan of spindle and motor can be relatively extended.



1. All Rectangular Insert Knife Cutterheads are made by High Tensile Steel that can maintain the precision long-term.



2. Because spiral design, the cutting resistance evenly distribute into small insert knives.  This light cutting way can prevent tear-out problem, accelerate the feed speed and reduce spindle and bearing’s consumption.

3. Placing insert knife work is easier. Comparing with square insert spiral cutterhead’s replacing insert time, the rectangular cutterhead need less time to replace insert knife.

4. The deep spiraled grooves have astonishing throwing sawdust ability.

5. Comparing with the large sawdust (cutting from the straight cutting angle cutterhead), the smaller sawdust (cutting form rectangular cutterhead) make dust collection equipment working better.



6. The rectangular insert knives of 30 mm x 12 mm x 1.5 mm (2 edges) are suitable for pre-planing.

7. The rectangular insert knives of 30 mm x 12 mm x 2.5 mm (2 edges) are suitable for heavy cutting.

8. If insert knife nicked, just replace it with little cost.

Specification

Rectangular-Insert-Knife Spiral Cutter Head (Insert: 30 mm x 12 mm x 2.5 mm)

Model

Diameter

Length

Bore

Wing

A9D125L  2d40W4-A

125

50

40

3T

A9D125L  3d40W4-A

125

75

40

3T

A9D125L  4d40W4-A

125

100

40

3T

A9D125L  5d40W4-A

125

125

40

3T

A9D125L  6d40W4-A

125

155

40

3T

A9D125L  7d40W4-A

125

180

40

3T

A9D125L  8d40W4-A

125

205

40

3T

A9D125L  9d40W4-A

125

230

40

3T

A9D125L10d40W4-A

125

255

40

3T

A9D125L11d40W4-A

125

280

40

3T

A9D125L12d40W4-A

125

305

40

3T

A9D125L  2d46W4-A

125

50

46

3T

A9D125L  3d46W4-A

125

75

46

3T

A9D125L  4d46W4-A

125

100

46

3T

A9D125L  5d46W4-A

125

125

46

3T

A9D125L  6d46W4-A

125

155

46

3T

A9D125L  7d46W4-A

125

180

46

3T

A9D125L  8d46W4-A

125

205

46

3T

A9D125L  9d46W4-A

125

230

46

3T

A9D125L10d46W4-A

125

255

46

3T

A9D125L11d46W4-A

125

280

46

3T

A9D125L12d46W4-A

125

305

46

3T

A9D125L  2d50W4-A

125

50

50

3T

A9D125L  3d50W4-A

125

75

50

3T

A9D125L  4d50W4-A

125

100

50

3T

A9D125L  5d50W4-A

125

125

50

3T

A9D125L  6d50W4-A

125

155

50

3T

A9D125L  7d50W4-A

125

180

50

3T

A9D125L  8d50W4-A

125

205

50

3T

A9D125L  9d50W4-A

125

230

50

3T

A9D125L10d50W4-A

125

255

50

3T

A9D125L11d50W4-A

125

280

50

3T

A9D125L12d50W4-A

125

305

50

3T

Insert Knife

Dimension

Material

30 mm x 12 mm x 1.5 mm

Tungsten Carbide (WF05)

30 mm x 12 mm x 2.5 mm

Tungsten Carbide (YF10)

30 mm x 12 mm x 2.5 mm

Tungsten Carbide (WF05)
