Application |
finish planing |
|---|---|
|
Cutterhead’s Material |
High Tensile Steel |
|
Diameter |
100, 125 mm |
|
Cutting Length |
50 - 305 mm |
|
Straight Bore |
40, 50 mm. 1 1/2, 1 13/16, 2 1/8 in |
|
Knife Hooks |
4, 6 |
|
Knife Size |
width 30 mm. thick 3 mm (smooth back) |
|
Cutting Angle |
Straight angle |
|
Applying Machine |
Moulder, Spindle Shaper |
|
Cutting Material |
solid wood |
|
Dynamically balanced |
6,000 or 8,000 rpm |
Information Of Production

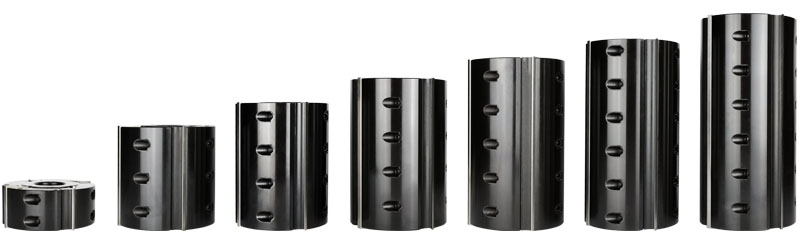

About Planing Cutter Head

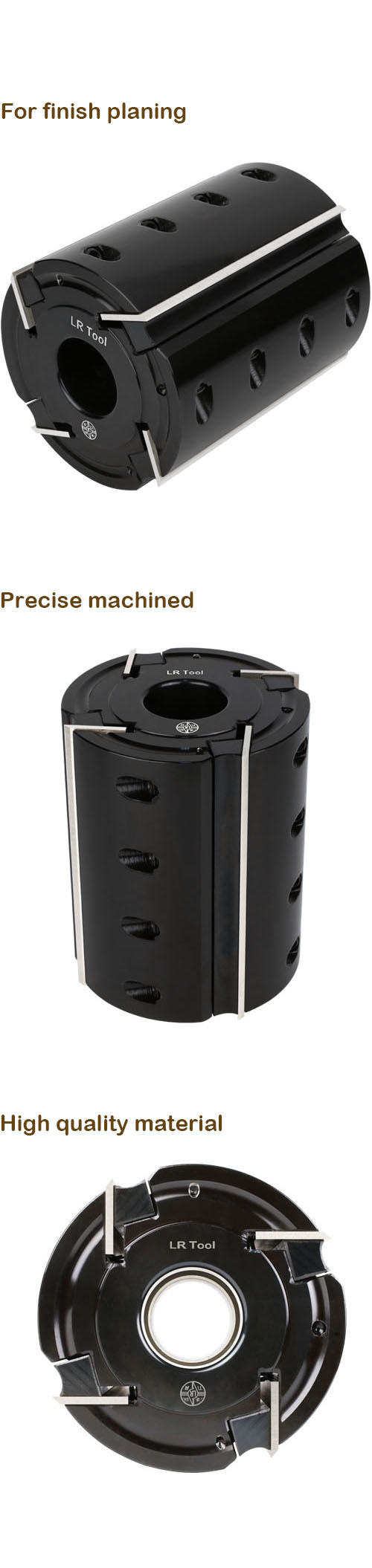

LR Tool’s Planing Cutterhead line is suitable for finish planing, using in Moulder. LR Tool only uses superior High Tensile Steel and high precision CNC to manufacture every Planing Cutterhead for ensuring the diameter and bore can persistently maintain precision. Especially, ether assembling and disassembling many times form machine or replacing knives repeatedly will not change the accuracy of diameter and bore.
Every Planing Cutterhead is dynamically balanced,6000 or 8000 rpm, which can effectively reduce uneven vibration while a machine is running, keeping the workpiece’s surface smooth and beautiful.
Specification
|
Model |
Diameter |
Length |
Bore |
Wing |
|---|---|---|---|---|
|
A5D125L 2d40W4 |
125 |
50 |
40 |
4T |
|
A5D125L 3d40W4 |
125 |
75 |
40 |
4T |
|
A5D125L 4d40W4 |
125 |
100 |
40 |
4T |
|
A5D125L 5d40W4 |
125 |
125 |
40 |
4T |
|
A5D125L 6d40W4 |
125 |
155 |
40 |
4T |
|
A5D125L 7d40W4 |
125 |
180 |
40 |
4T |
|
A5D125L 8d40W4 |
125 |
205 |
40 |
4T |
|
A5D125L 9d40W4 |
125 |
230 |
40 |
4T |
|
A5D125L10d40W4 |
125 |
255 |
40 |
4T |
|
A5D125L11d40W4 |
125 |
280 |
40 |
4T |
|
A5D125L12d40W4 |
125 |
305 |
40 |
4T |
|
A5D125L 2d46W4 |
125 |
50 |
46 |
4T |
|
A5D125L 3d46W4 |
125 |
75 |
46 |
4T |
|
A5D125L 4d46W4 |
125 |
100 |
46 |
4T |
|
A5D125L 5d46W4 |
125 |
125 |
46 |
4T |
|
A5D125L 6d46W4 |
125 |
155 |
46 |
4T |
|
A5D125L 7d46W4 |
125 |
180 |
46 |
4T |
|
A5D125L 8d46W4 |
125 |
205 |
46 |
4T |
|
A5D125L 9d46W4 |
125 |
230 |
46 |
4T |
|
A5D125L10d46W4 |
125 |
255 |
46 |
4T |
|
A5D125L11d46W4 |
125 |
280 |
46 |
4T |
|
A5D125L12d46W4 |
125 |
305 |
46 |
4T |
|
A5D125L 2d50W4 |
125 |
50 |
50 |
4T |
|
A5D125L 3d50W4 |
125 |
75 |
50 |
4T |
|
A5D125L 4d50W4 |
125 |
100 |
50 |
4T |
|
A5D125L 5d50W4 |
125 |
125 |
50 |
4T |
|
A5D125L 6d50W4 |
125 |
155 |
50 |
4T |
|
A5D125L 7d50W4 |
125 |
180 |
50 |
4T |
|
A5D125L 8d50W4 |
125 |
205 |
50 |
4T |
|
A5D125L 9d50W4 |
125 |
230 |
50 |
4T |
|
A5D125L10d50W4 |
125 |
255 |
50 |
4T |
|
A5D125L11d50W4 |
125 |
280 |
50 |
4T |
|
A5D125L12d50W4 |
125 |
305 |
50 |
4T |
|
A5D125L 2d40W6 |
125 |
50 |
40 |
6T |
|
A5D125L 3d40W6 |
125 |
75 |
40 |
6T |
|
A5D125L 4d40W6 |
125 |
100 |
40 |
6T |
|
A5D125L 5d40W6 |
125 |
125 |
40 |
6T |
|
A5D125L 6d40W6 |
125 |
155 |
40 |
6T |
|
A5D125L 7d40W6 |
125 |
180 |
40 |
6T |
|
A5D125L 8d40W6 |
125 |
205 |
40 |
6T |
|
A5D125L 9d40W6 |
125 |
230 |
40 |
6T |
|
A5D125L10d40W6 |
125 |
255 |
40 |
6T |
|
A5D125L11d40W6 |
125 |
280 |
40 |
6T |
|
A5D125L12d40W6 |
125 |
305 |
40 |
6T |
|
A5D125L 2d46W6 |
125 |
50 |
46 |
6T |
|
A5D125L 3d46W6 |
125 |
75 |
46 |
6T |
|
A5D125L 4d46W6 |
125 |
100 |
46 |
6T |
|
A5D125L 5d46W6 |
125 |
125 |
46 |
6T |
|
A5D125L 6d46W6 |
125 |
155 |
46 |
6T |
|
A5D125L 7d46W6 |
125 |
180 |
46 |
6T |
|
A5D125L 8d46W6 |
125 |
205 |
46 |
6T |
|
A5D125L 9d46W6 |
125 |
230 |
46 |
6T |
|
A5D125L10d46W6 |
125 |
255 |
46 |
6T |
|
A5D125L11d46W6 |
125 |
280 |
46 |
6T |
|
A5D125L12d46W6 |
125 |
305 |
46 |
6T |
|
A5D125L 2d50W6 |
125 |
50 |
50 |
6T |
|
A5D125L 3d50W6 |
125 |
75 |
50 |
6T |
|
A5D125L 4d50W6 |
125 |
100 |
50 |
6T |
|
A5D125L 5d50W6 |
125 |
125 |
50 |
6T |
|
A5D125L 6d50W6 |
125 |
155 |
50 |
6T |
|
A5D125L 7d50W6 |
125 |
180 |
50 |
6T |
|
A5D125L 8d50W6 |
125 |
205 |
50 |
6T |
|
A5D125L 9d50W6 |
125 |
230 |
50 |
6T |
|
A5D125L10d50W6 |
125 |
255 |
50 |
6T |
|
A5D125L11d50W6 |
125 |
280 |
50 |
6T |
|
A5D125L12d50W6 |
125 |
305 |
50 |
6T |
* Most of Planing Cutterhead listed on the specification are in stock.
* LR-Tool welcome custom-made size that not list in the specification. Please email us for inquiring or ordering.

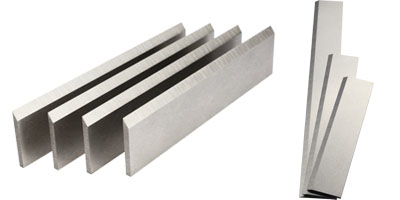

Flat Back Knife
HSS Planing Cutter Knife
|
Length |
Width |
Height |
|---|---|---|
|
50 mm |
30 mm |
3 mm |
|
75 mm |
30 mm |
3 mm |
|
100 mm |
30 mm |
3 mm |
|
125 mm |
30 mm |
3 mm |
|
155 mm |
30 mm |
3 mm |
|
180 mm |
30 mm |
3 mm |
|
205 mm |
30 mm |
3 mm |
|
230 mm |
30 mm |
3 mm |
|
255 mm |
30 mm |
3 mm |
|
280 mm |
30 mm |
3 mm |
|
305 mm |
30 mm |
3 mm |
＊Carbide Inlay Knives are custom-made.

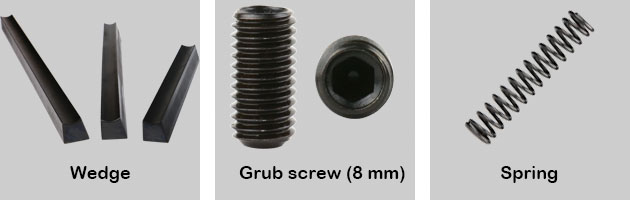

Accessory
