LR Tool official (Lin Ruey Knifeware), Cutter Head, Woodworking Tool.-4 Side Moulder

Information Of Production

Application	Used in 4 side moulder. Combining with a cutterhead that assembled at the first bottom spindle to use.
Cutterhead’s material	High Tensile Steel
Diameter	150 mm
Cutting Length	14 mm
Straight Bore	40, 50 mm. 1 13/16 in
Knife Row	6, 8 rows
Insert Knife	Square tungsten carbide insert, 14 mm x 14 mm x 2.0 mm (37-degree bevel)
Applying Machine	Four side moulder
Cutting Material	solid wood, MDF
Dynamically balanced	6,000 or 8,000 rpm

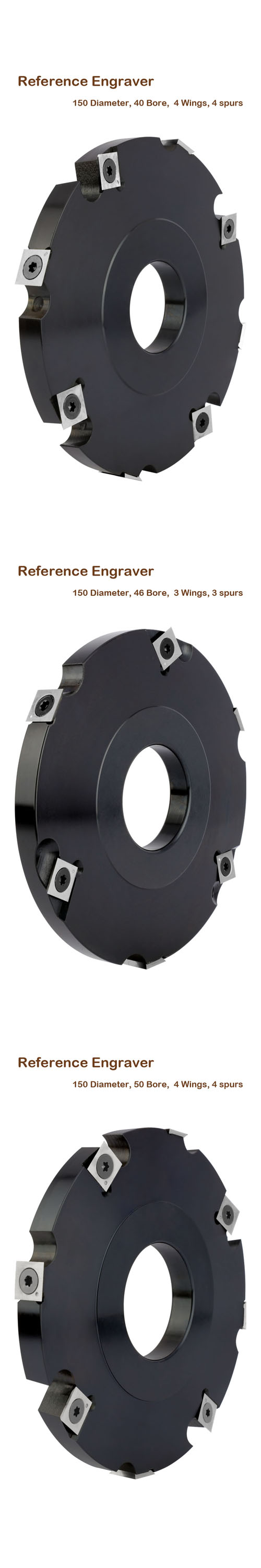

The Reference Engraver is used in 4 side moulder Combining with the cutterhead that assembled at the first bottom spindle to use.

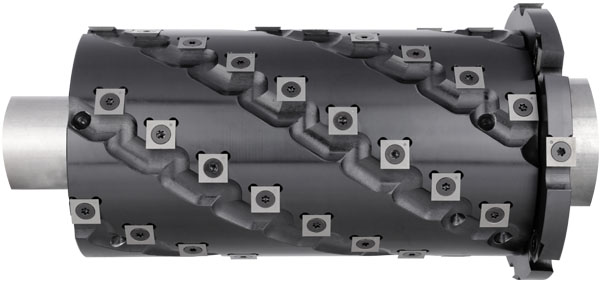

The Reference Engraver combine with a spiral cutterhead for heavy cutting & pre-planing.

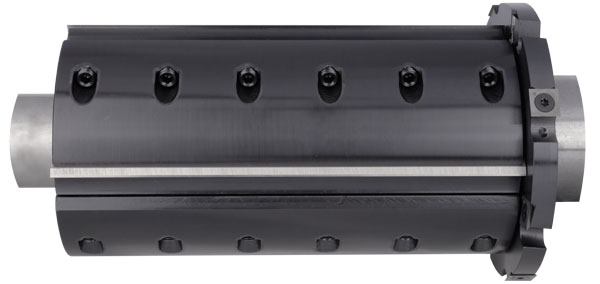

Combining with planer cutterhead for pre-planing.

Model	Demeter	Length	Bore	Wing (Z)	Spur
E4D150L14d40W3	150 mm	14 mm	40 mm	3	3
E4D150L14d40W4	150 mm	14 mm	40 mm	4	4
E4D150L14d46W3	150 mm	14 mm	1 13/16 in	3	3
E4D150L14d50W3	150 mm	14 mm	50 mm	3	3
E4D150L14d50W4	150 mm	14 mm	50 mm	4	4

* Most of Reference Engraver, listed on the specification, are in stock.

* We welcome customized Chamfer Cutter Head. Please E-mail us for inquiry or ordering.

Diameter	Cutting Length	Bore	Wing	Rotation
125.8 mm	15 mm	40 mm	9 wings	cw. and ccw.
156 mm	14 mm	40 mm	6 wings	cw. and ccw.
156.4 mm	15 mm	40 mm	8 wings
159.2 mm	13.55 mm	40 mm	12 wings
175 mm	14 mm	40 mm	6 wings	cw. and ccw.
175 mm	15 mm	40 mm	12 wings	cw. and ccw.
197 mm	10.5 mm	25.5 mm	6 wings
205.8 mm	15 mm	25.5 mm	12 wings

14 mm x 14 mm x 2.0 mm, 37-degree bevel, Tungsten Carbide (kcr08)
