Aluminum Quick-Replace Cutter Head

Information of production

Application

finish planing

Cutterhead’s Material

Aluminum

Diameter

125 - 305 mm

Cutting Length

50 - 305 mm

Straight Bore

40, 50 mm

Knife Hooks

4 ,6

Knife Size

width 14 mm. thick 2.5 mm (corrugated back)

Cutting Angle

Straight angle

Applying Machine

Four Side Moulder

Cutting Material

solid wood

Dynamically balanced

6,000 or 8,000 rpm

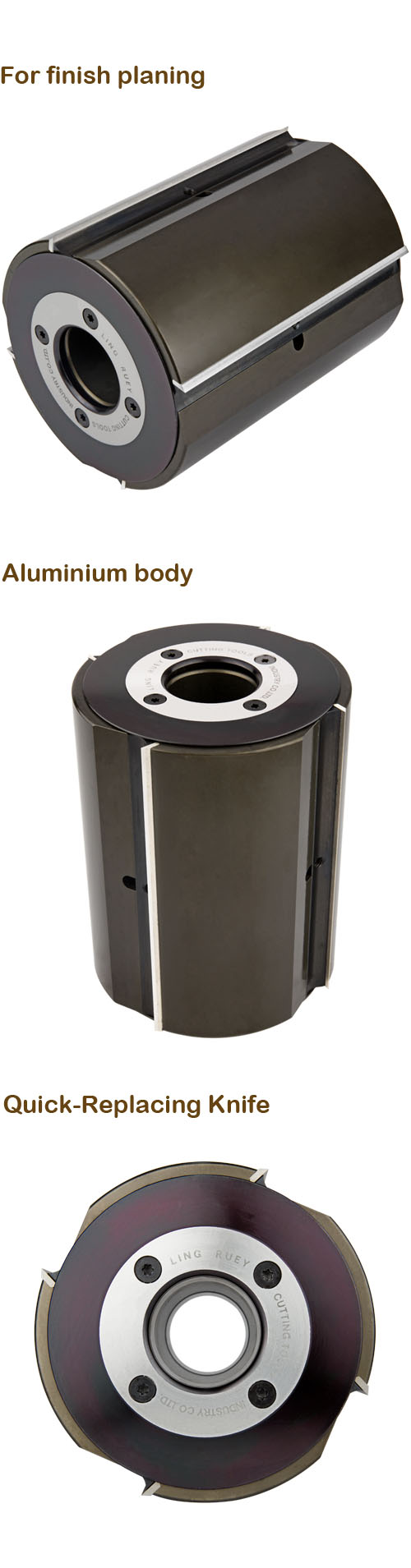

Aluminum Quick-replace Planing Cutter Head

LR Tool’s Aluminum Quick-replace Planing Cutter heads are suitable for finish planing, using in Moulder.

Because of the aluminum body, the cutter head has light weight feature that extend bearing and spindle’s life span.

Due to LR Tool’s unique design, the quick-lock system can greatly save the replacing time of knife. Just loosen a screw and the knife can be replaced.

Every Quick-replace Planing Cutter heads are dynamically balanced to 6000 or 8000 rpm that can effectively reduce uneven vibration while a machine is running, keeping the workpiece’s surface smooth and beautiful.

Specification

Model

Diameter (mm)

Length (mm)

Bore (mm)

Wing

A4D125L  2d40W4

125

50

40

4T

A4D125L  3d40W4

125

75

40

4T

A4D125L  4d40W4

125

100

40

4T

A4D125L  5d40W4

125

125

40

4T

A4D125L  6d40W4

125

155

40

4T

A4D125L  7d40W4

125

180

40

4T

A4D125L  8d40W4

125

205

40

4T

A4D125L  9d40W4

125

230

40

4T

A4D125L10d40W4

125

255

40

4T

A4D125L11d40W4

125

280

40

4T

A4D125L12d40W4

125

305

40

4T

A4D125L  2d50W4

125

50

50

4T

A4D125L  3d50W4

125

75

50

4T

A4D125L  4d50W4

125

100

50

4T

A4D125L  5d50W4

125

125

50

4T

A4D125L  6d50W4

125

155

50

4T

A4D125L  7d50W4

125

180

50

4T

A4D125L  8d50W4

125

205

50

4T

A4D125L  9d50W4

125

230

50

4T

A4D125L10d50W4

125

255

50

4T

A4D125L11d50W4

125

280

50

4T

A4D125L12d50W4

125

305

50

4T

A4D125L  2d40W6

125

50

40

6T

A4D125L  3d40W6

125

75

40

6T

A4D125L  4d40W6

125

100

40

6T

A4D125L  5d40W6

125

125

40

6T

A4D125L  6d40W6

125

155

40

6T

A4D125L  7d40W6

125

180

40

6T

A4D125L  8d40W6

125

205

40

6T

A4D125L  9d40W6

125

230

40

6T

A4D125L10d40W6

125

255

40

6T

A4D125L11d40W6

125

280

40

6T

A4D125L12d40W6

125

305

40

6T

A4D125L  2d50W6

125

50

50

6T

A4D125L  3d50W6

125

75

50

6T

A4D125L  4d50W6

125

100

50

6T

A4D125L  5d50W6

125

125

50

6T

A4D125L  6d50W6

125

155

50

6T

A4D125L  7d50W6

125

180

50

6T

A4D125L  8d50W6

125

205

50

6T

A4D125L  9d50W6

125

230

50

6T

A4D125L10d50W6

125

255

50

6T

A4D125L11d50W6

125

280

50

6T

A4D125L12d50W6

125

305

50

6T

A4D135L  2d40W4

135

50

40

4T

A4D135L  3d40W4

135

75

40

4T

A4D135L  4d40W4

135

100

40

4T

A4D135L  5d40W4

135

125

40

4T

A4D135L  6d40W4

135

155

40

4T

A4D135L  7d40W4

135

180

40

4T

A4D135L  8d40W4

135

205

40

4T

A4D135L  9d40W4

135

230

40

4T

A4D135L10d40W4

135

255

40

4T

A4D135L11d40W4

135

280

40

4T

A4D135L12d40W4

135

305

40

4T

A4D135L  2d50W4

135

50

50

4T

A4D135L  3d50W4

135

75

50

4T

A4D135L  4d50W4

135

100

50

4T

A4D135L  5d50W4

135

125

50

4T

A4D135L  6d50W4

135

155

50

4T

A4D135L  7d50W4

135

180

50

4T

A4D135L  8d50W4

135

205

50

4T

A4D135L  9d50W4

135

230

50

4T

A4D135L10d50W4

135

255

50

4T

A4D135L11d50W4

135

280

50

4T

A4D135L12d50W4

135

305

50

4T

A4D135L  2d40W6

135

50

40

6T

A4D135L  3d40W6

135

75

40

6T

A4D135L  4d40W6

135

100

40

6T

A4D135L  5d40W6

135

125

40

6T

A4D135L  6d40W6

135

155

40

6T

A4D135L  7d40W6

135

180

40

6T

A4D135L  8d40W6

135

205

40

6T

A4D135L  9d40W6

135

230

40

6T

A4D135L10d40W6

135

255

40

6T

A4D135L11d40W6

135

280

40

6T

A4D135L12d40W6

135

305

40

6T

A4D135L  2d50W6

135

50

50

6T

A4D135L  3d50W6

135

75

50

6T

A4D135L  4d50W6

135

100

50

6T

A4D135L  5d50W6

135

125

50

6T

A4D135L  6d50W6

135

155

50

6T

A4D135L  7d50W6

135

180

50

6T

A4D135L  8d50W6

135

205

50

6T

A4D135L  9d50W6

135

230

50

6T

A4D135L10d50W6

135

255

50

6T

A4D135L11d50W6

135

280

50

6T

A4D135L12d50W6

135

305

50

6T

A4D135L16d40W6

135

405

40

6T

A4D135L16d50W6

135

405

50

6T

A4D150L  2d40W6

150

50

40

6T

A4D150L  3d40W6

150

75

40

6T

A4D150L  4d40W6

150

100

40

6T

A4D150L  5d40W6

150

125

40

6T

A4D150L  6d40W6

150

155

40

6T

A4D150L  7d40W6

150

180

40

6T

A4D150L  8d40W6

150

205

40

6T

A4D150L  9d40W6

150

230

40

6T

A4D150L  9d50W6

150

50

50

6T

A4D150L  3d50W6

150

75

50

6T

A4D150L  4d50W6

150

100

50

6T

A4D150L  5d50W6

150

125

50

6T

A4D150L  6d50W6

150

155

50

6T

A4D150L  7d50W6

150

180

50

6T

A4D150L  8d50W6

150

205

50

6T

A4D150L  9d50W6

150

230

50

6T



Knife



HSS  Quick-Replace Cutter Knife

Length

Width

Thick

50 mm

14 mm

2.5 mm

75 mm

14 mm

2.5 mm

100 mm

14 mm

2.5 mm

125 mm

14 mm

2.5 mm

155 mm

14 mm

2.5 mm

180 mm

14 mm

2.5 mm

205 mm

14 mm

2.5 mm

230 mm

14 mm

2.5 mm

255 mm

14 mm

2.5 mm

280 mm

14 mm

2.5 mm

305 mm

14 mm

2.5 mm

405 mm

14 mm

2.5 mm

＊Tungusten Carbide Knives are custom-made.
